Product Description

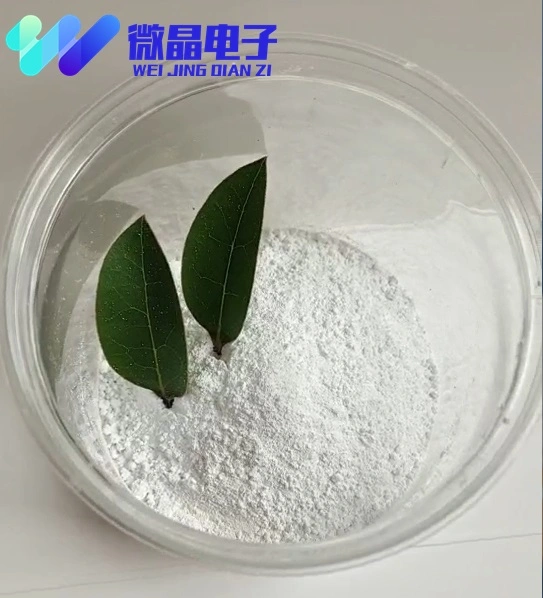

WJD-2000 is a multi-purpose rutile titanium dioxide manufactured by the chloride process for dielectric ceramic material, MLCC, LTCC, and filters applications. It is a fine dry powder with the following general properties.
Table 1
Analysis and Physical Properties of WJD-2000
Suggestions for Use
WJD-2000 has outstanding dispersion performance, narrow size distribution, WJD-2000 is recommended for use in:
• dielectric ceramic material
• piezoelectric ceramics
For safety information, please visit the product safety date sheet(MSDS)
Packaging and Storage:

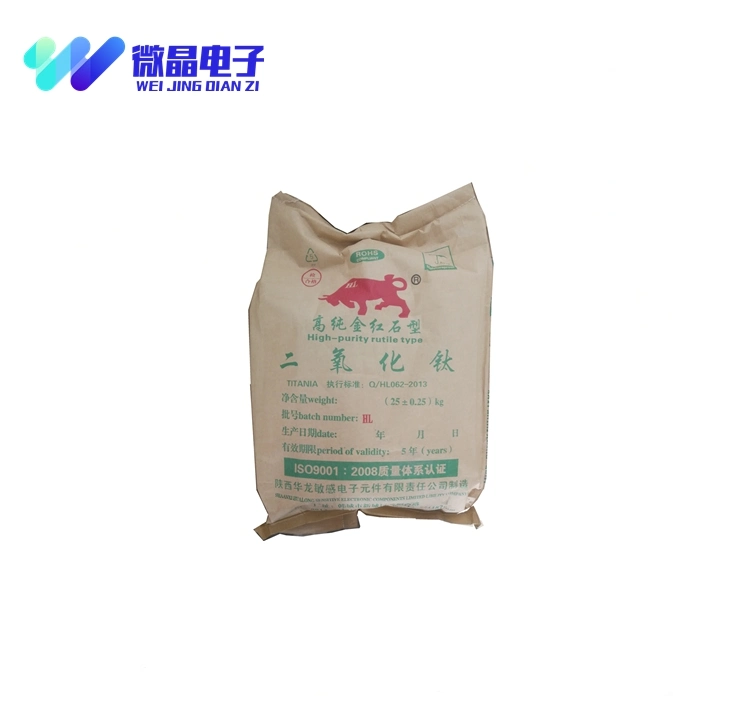

WJD-2000 is available in 25-kg kraft bags. The shelf life of WJD-900 is indefinite as long as the material is kept from direct contact with moisture.
WJD-2000 is a multi-purpose rutile titanium dioxide manufactured by the chloride process for dielectric ceramic material, MLCC, LTCC, and filters applications. It is a fine dry powder with the following general properties.
Table 1
Analysis and Physical Properties of WJD-2000
| Property | WJD-2000 |
| TiO 2 , wt%, min. | 99.98% |
| Median Particle Size(µm) | 1.216 |
| Specific surface area m2/g | 6.182 |
| Cl≤(ppm) | 200 |
| Loss on ignition≤% | 0.02 |
Suggestions for Use
WJD-2000 has outstanding dispersion performance, narrow size distribution, WJD-2000 is recommended for use in:
• dielectric ceramic material
• piezoelectric ceramics
For safety information, please visit the product safety date sheet(MSDS)
Packaging and Storage:
WJD-2000 is available in 25-kg kraft bags. The shelf life of WJD-900 is indefinite as long as the material is kept from direct contact with moisture.
