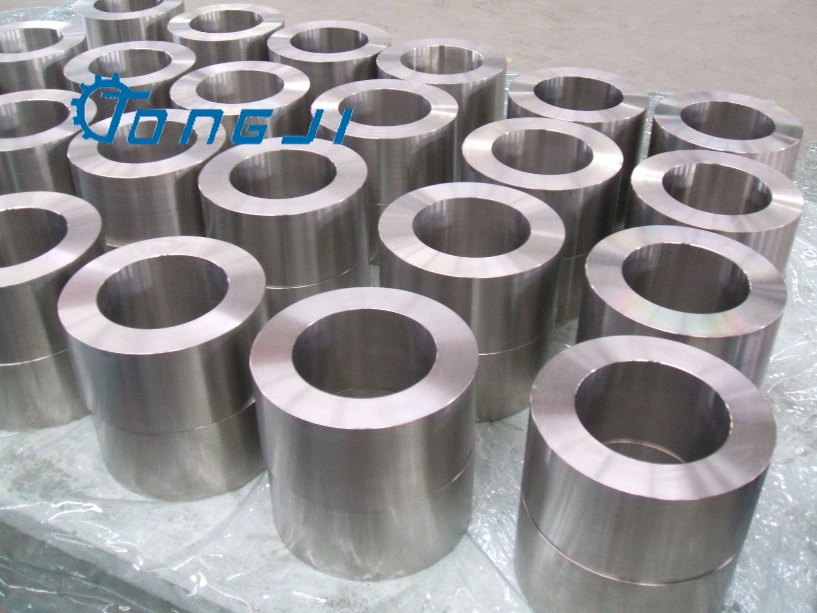

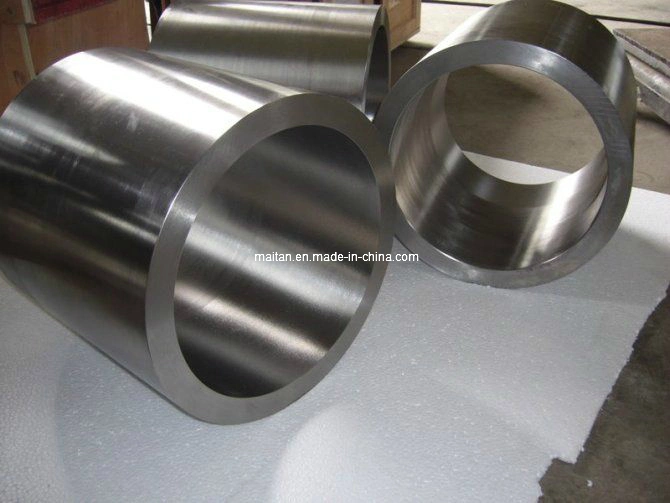

Ring rage: OD up to 2000mm, 500mm high. Others on the request.
Flanges Types:
-Welding Neck Flange(WNF) & Long Welding Neck Flange(LWNF)
-Slip-on Flange(SOF)
-Lap Joint Flange(LJW)
-Blind Flange
-Socket Welding Flange (SWF)
-Threaded Flange(THW)
-Plate Flange
Non-standard Special flanges can be made as per customer's drawing.
We always seek and improve our service as per requirement of our valued customers.
| Commodity | Titanium Forged Ring & Flange |
| Process method | Forged, Machined |
| Materials Grades | F2, F5, F7, F12 etc WPT1,WPT2, WPT7,WPT12 etc |
| Standards: | ASTM B381, ASTM B363, ANIS B16.5, ANSI B16.47 or closer. |
| Size | Ring: OD up to 2000 mm, High to 500 mm or as per drawing. NPS 1/2" to 48" or as per drawing. |
| Pressure ratings: | Class 150LB to Class 2500LB (PN 2.5 to PN 40 Bar) |
| Condition | Annealed |
| Inspection Testing | Mechanical Test, Hardness Test Ultrasonic Test, PT, MT, Hydraulic Test, or as required |
| Certificate | EN 1024 3.1/ 3.1B/ 3.2, PED, DNV, TUV. |
| Packing | Wooden case/ Steel framed plywood case/ simple packing. |
| Delivery Time | By mutual agreement. |
